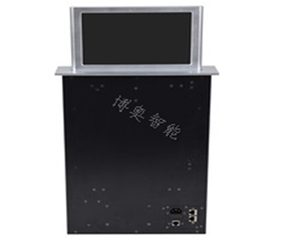

1. The whole body of this product adopts pure aluminum alloy structure. The materials used are extruded at high temperature with a shaped aluminum die, and then hardened for 24 hours. Then the parts are produced by CNC finishing. Surface treatment: through the fine wire drawing, and then through the oxygen electrode oxidation, an oxidation protective layer is formed.

2. Transmission mode: The advanced chain transmission structure is adopted to reduce the noise of gears biting each other and make the mute effect better. Two solid stainless steel guide posts are used on both sides of the lifting frame to escort the smooth lifting of the LCD screen.

3. The flip-up door adopts a flip-up cone structure to make the tiny gap opaque and realize a sealed visual sense. The drive of the flip-up door adopts trapezoidal chute attached to both sides of the board to achieve a simple and generous overall.

4. The wiring adopts professional protective wire tank chain, open the case, you can't see the wires crossing left and right, neat and beautiful.

5. The equipment also adds a humanized anti-pinch function.

Product Specifications

Panel material: high-grade aluminum alloy (color brushed silver, brushed black) (other aluminum alloy material colors can be processed according to user requirements).

Display shell material: high-grade aluminum alloy (brushed silver, brushed black, sandblasted silver, sandblasted black) (other aluminum alloy colors can be processed according to user requirements).

Body shell material: high-grade aluminum alloy (brushed black) (other aluminum alloy colors can be processed according to user requirements).

Control mode: Support panel button control, unified radio frequency remote control, RS485/RS232 centralized or grouped control.

Adjustable range of display angle: 0~15 degrees

Storage temperature: -40℃-85℃

Working temperature: -15℃-40℃

Power supply range: AC: 198—242V

installation method:

1. Open the secondary counterbore according to the size of the desktop.

2. Remove the safety screws of the table card lifter.

3. Put the table card lifter vertically on the table with pre-opened holes.

4. Connect all kinds of wires well and you can use it
